Description

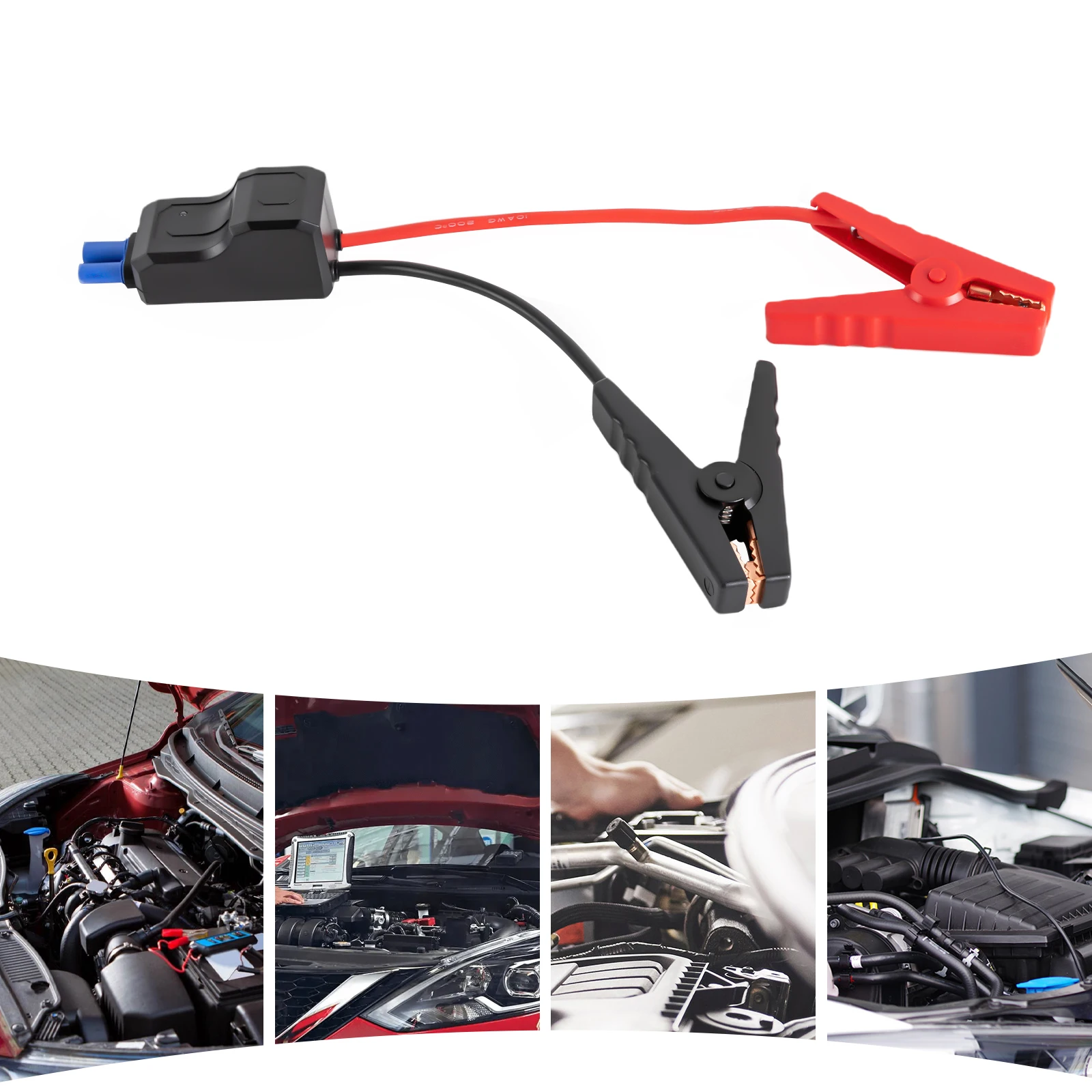

Have you ever had the experience of being forced to be stranded on the highway when your car ran out of power? After being trapped, you call for help, but it takes too long for the rescue team to come. With this battery clamp, it can quickly help you restart your car's power and get you out of the dilemma of being stranded.

Details

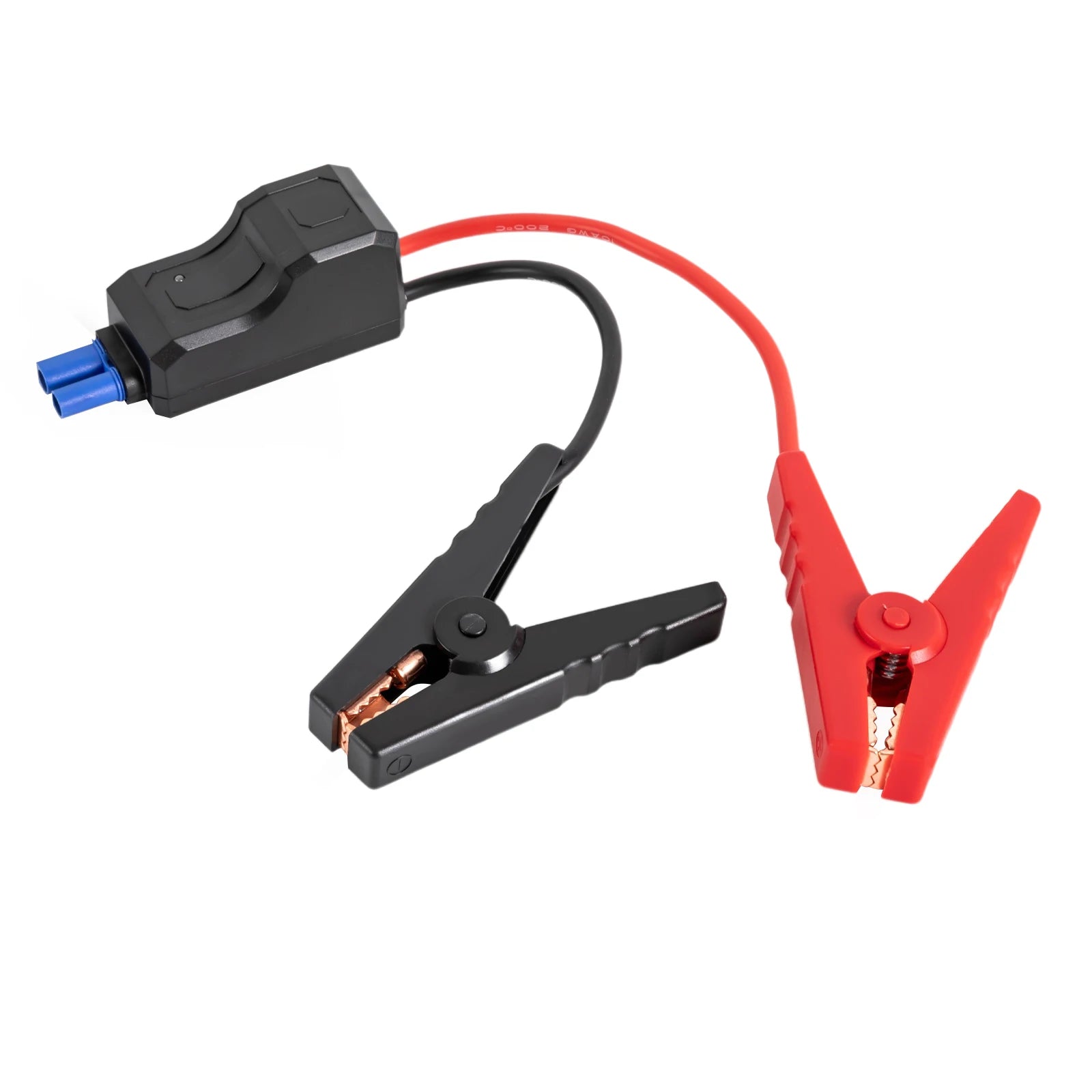

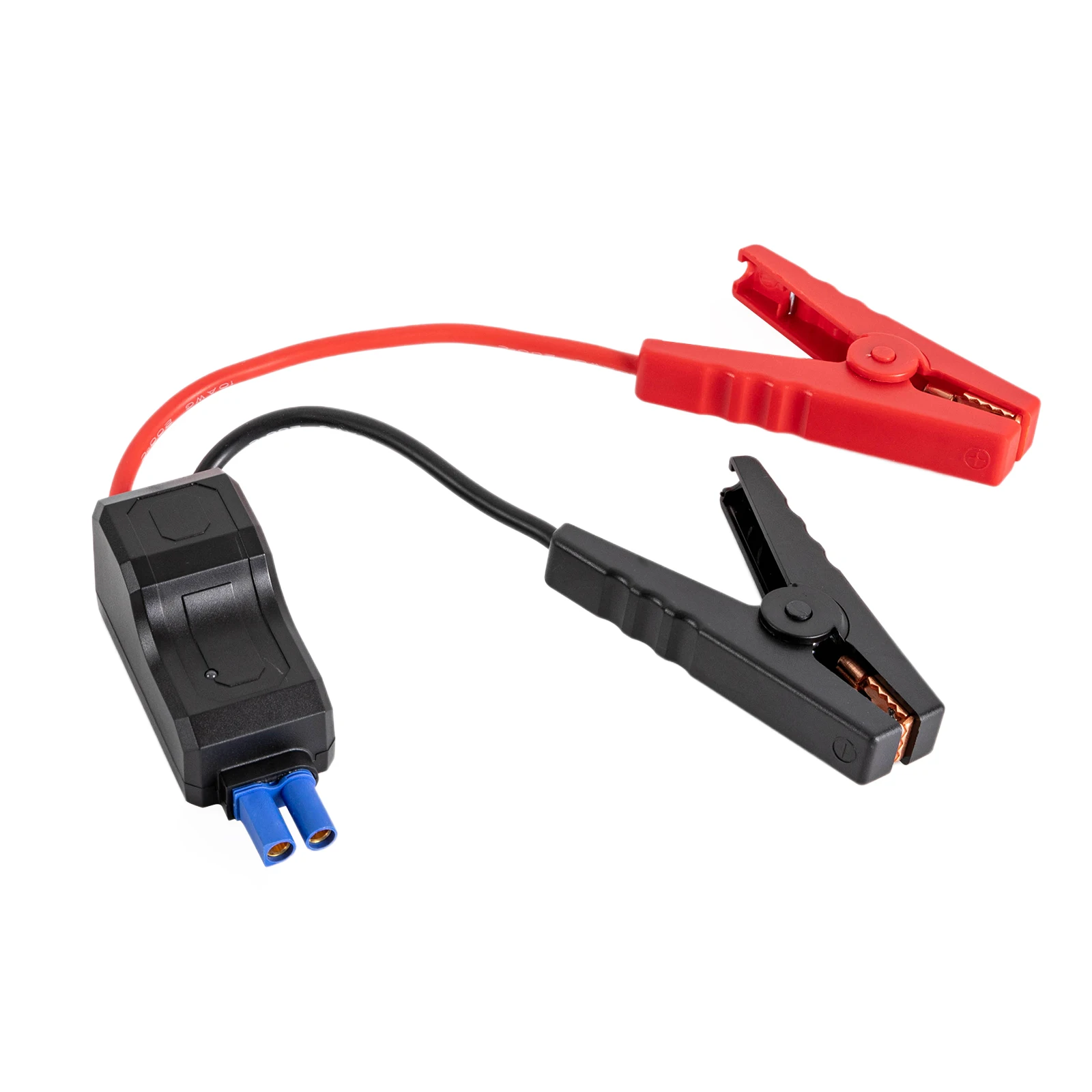

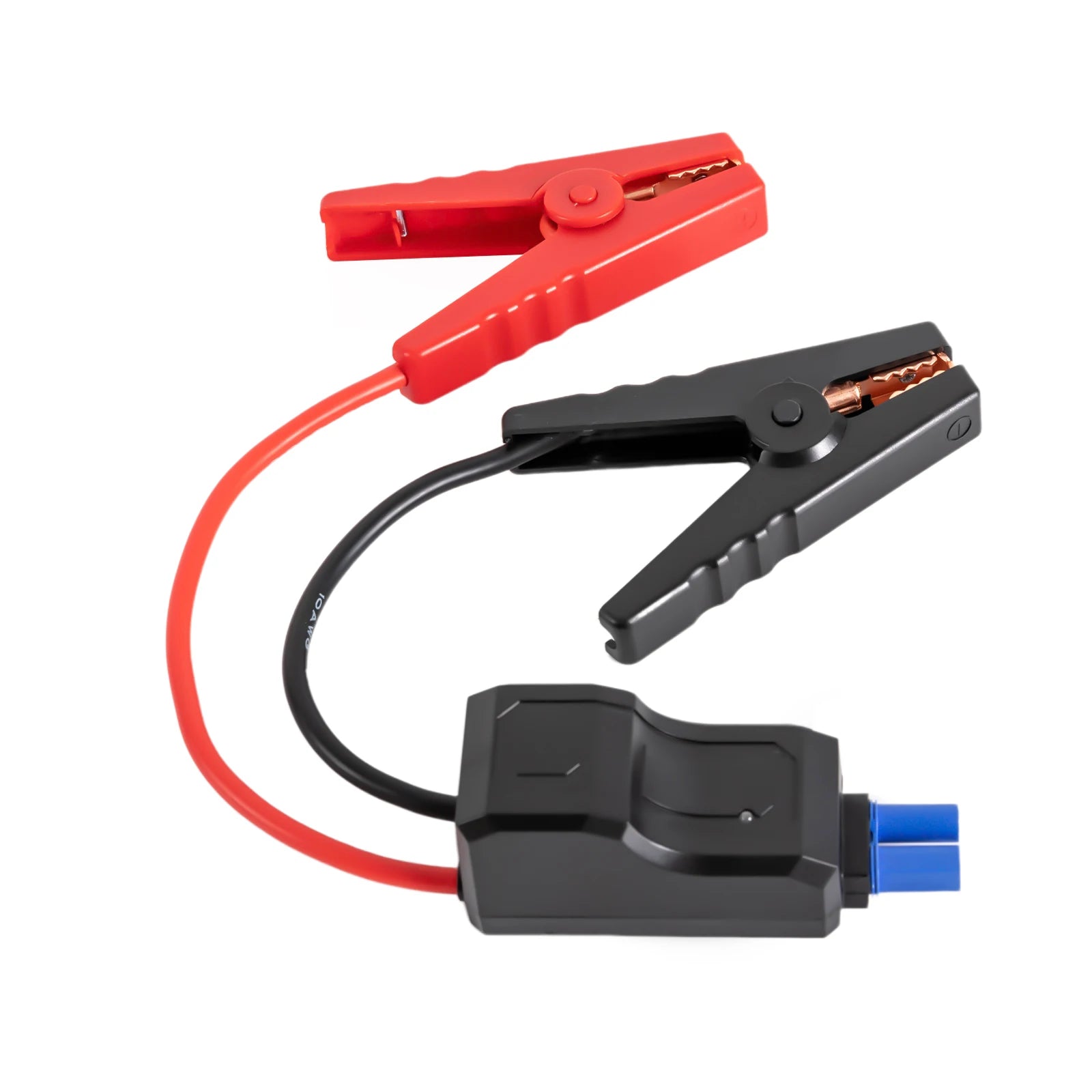

Color Distinction: The red clamp is the positive pole and the black one is the negative pole. The two clearly colores allow you to easily distinguish.

Groove Pattern: The end of the battery clamp has a groove pattern, which can effectively increase friction and make the clip easier to hold and use.

Pure Copper Gold Plated Interface: The pure copper gold-plated interface has the advantages of low resistance, good conductivity, low heat generation, and long life.

Highly Flame Retardant PCB Board: The PCB board built into the product is not only highly flame retardant, but it is also very precise and maintainable. Once a failure occurs, it can be replaced efficiently, quickly, and easily.

How to Use

1. Add the red collet to the positive terminal of the car battery, and the black collet to the negative terminal of the car battery.

2. EC5 plug into the emergency starter power starts port.

3. The battery clamp work light becomes red and green alternately, indicating the correct connection.

4. Within 30 seconds after the battery clamp is connected correctly, go to the car to start car. (Before starting, please turn off the air conditioning, audio, and high-powered electrical equipment; some cars need to open the car headlights before starting.) .

5. Within 30 seconds after the successful start, please release the battery clamp from the car battery.

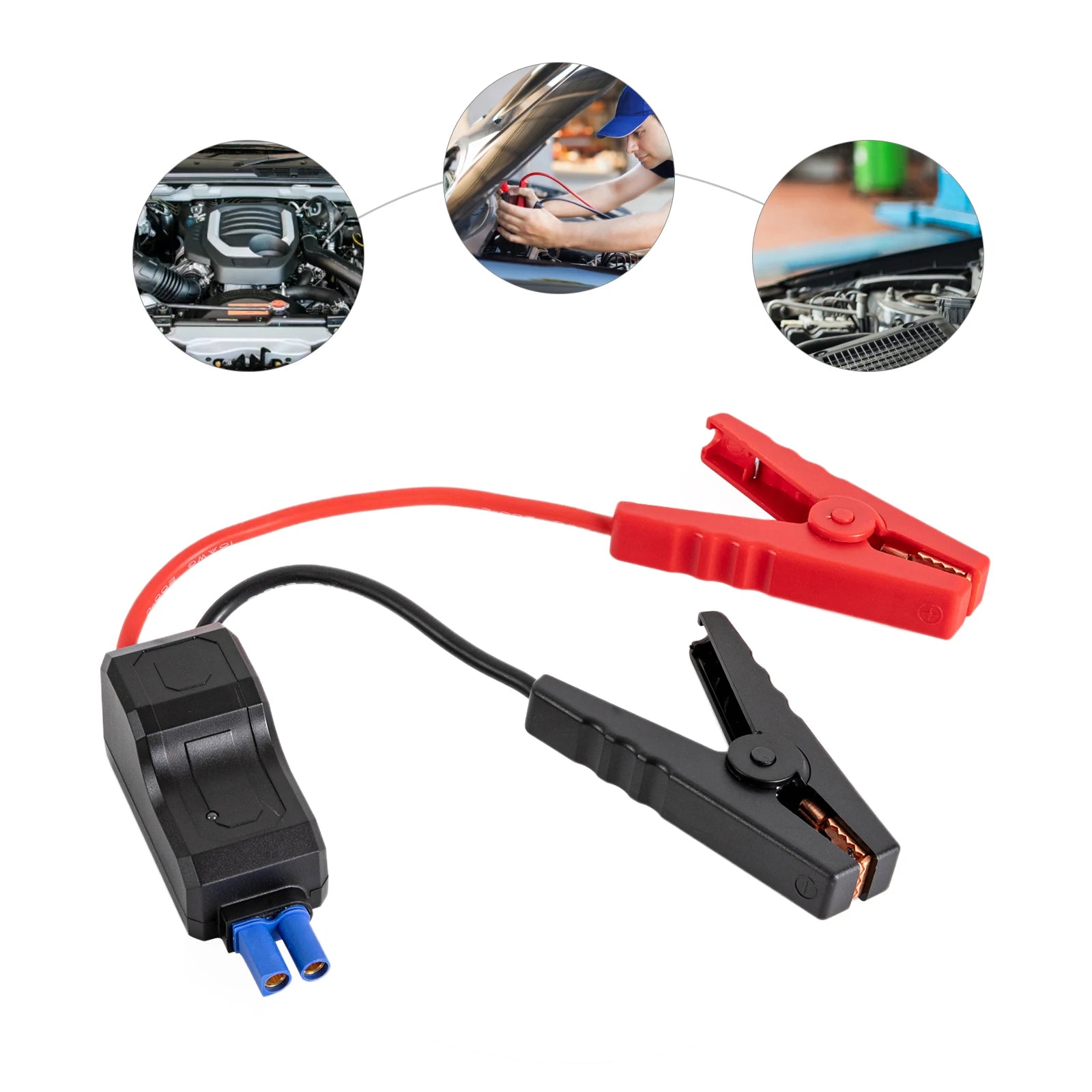

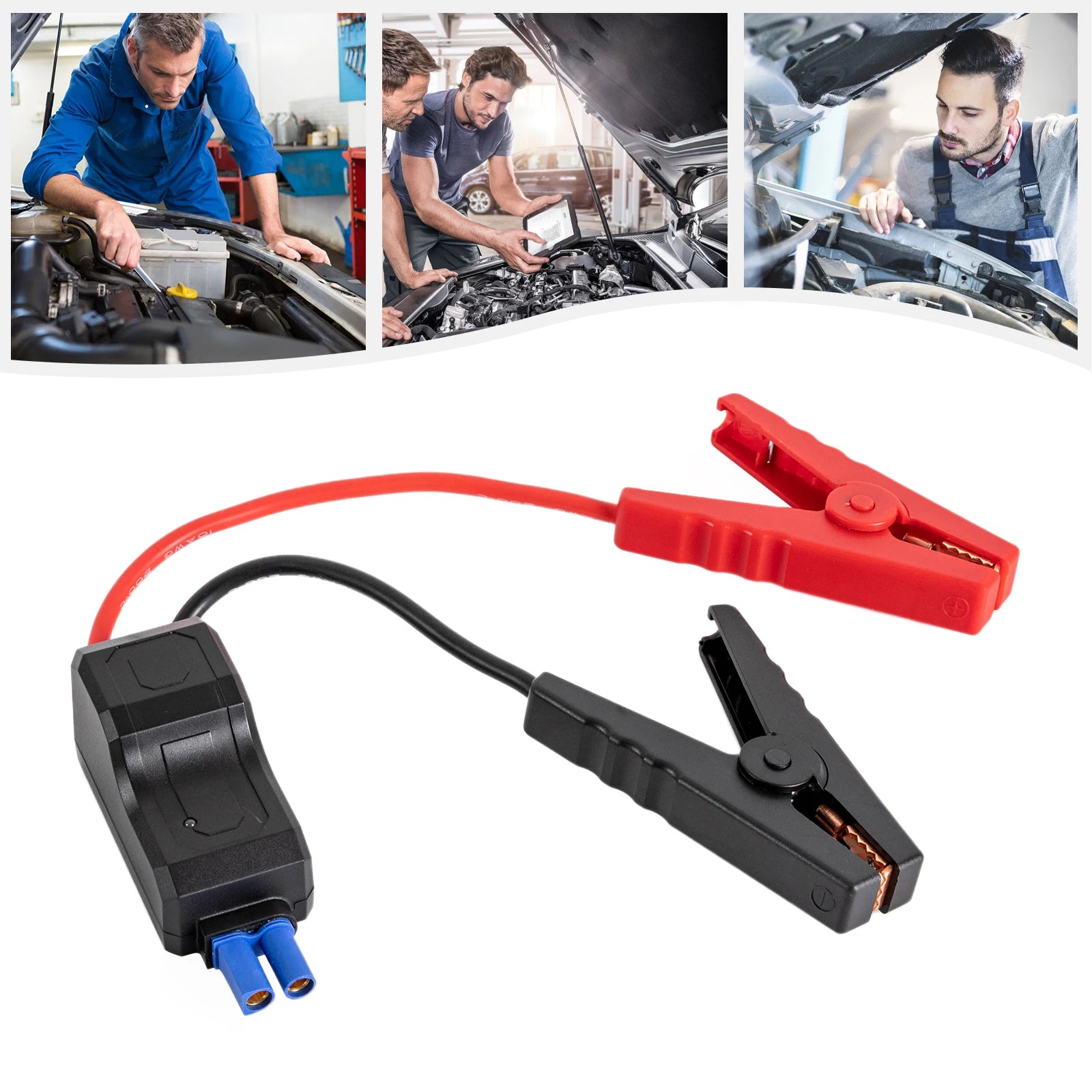

Application

This product is suitable for EC5 port power. It is suitable for 12V gasoline vehicles and is compatible with most car mini jump portable starters and mobile chargers and can start faster when fully charged with 4 cells.

Specification

Model: A1

Color: Black / Red

Wire Gauge: 10 AWG

Assembly Required: No

Applicable: EC5 Socket Power

Material: Copper, ABS

Voltage: 12V

Peak Current: 600A

Total Wire Length: About 45cm/17.72in

Weight: 0.19kg/ 0.42 lbs

Battery Clamp Length: 9.5cm/3.74in

Product Size: 10*4.5cm/ 3.94*1.77 in

Package Size: 20.9*7*2cm/8.23*2.76*0.79 in

Package Included

1* Battery Clamp

Notes

1. Please don't start the car continuously with the ignition on or twist the key and don't release it, each start needs more than 1-minute interval.

2. Please remove the battery clamp within 30 seconds after starting the car.

3. The positive and negative poles cannot be reversed. Otherwise, it will easily cause a short circuit.

4. If the number of battery indicators is less than 3, please do not use the jumper starter to start the vehicle in order to protect the jumper starter from damage.

5. This product should not be overloaded. Please check the power supply of the equipment before use.

6. Please check if the product supports your car.

7. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
